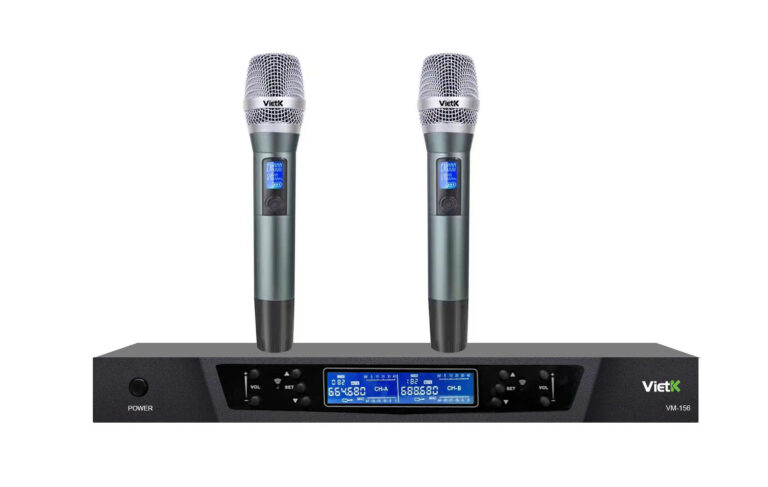

RECEIVER

1.Power button: Power on/off
2.Volume +: for receiver A increase volume
3. Volume -: for receiver A reduce volume
4.A+: A frequency increase
5.A- : A frequency reduce
6.SET button A menu setting button
7.LCD display Display information such as frequency and battery usage
8.SET button B menu setting button
9.B-: B frequency reduce
10.B+: B frequency increase
11.Volume +: for receiver A increase volume
12. Volume – : for receiver A reduce volume
13. Frequency of infrared window

14.Antenna: Receives the microphone signal. lt is best to receive the signal in a V shape
15.Power adapter port: Connect the power supply and receiver through the power adapter
16.XLR interface: CHB XLR interface

17.A + B mixed output interface: 6.3mm mixed A and B channel audio output interface
18.XLR interface: CHB XLR interface

HANDHELD

1.Net head: handheld radio section
2.LCD display Display information such as frequency and battery usage
3.Power button: Power on/off
4.High and low frequency keys, After unscrewing the body, flick left and right to adjust the
high and low frequencies
5.Lower body: Can be unscrewed and separated from the body
6.Battery slot: Unscrew the lower section and insert two batteries into the battery card slot

RECEIVER SYSTEM SETTING
RECEIVER OPERATION

1.Power button
a. Press and hold this key for 2 seconds to switch the receiver on and off.
b. Lock or unlock, In the state of manual shutdown, press and hold A volume and hold
down,press the power button to turn on, you can perform the lock or unlock action.
c. Power on / off memory function, The receiver will automatically remember the power on
/ off status before the last power failure. That is, before the last power failure, the receiver
was on.
Then the receiver will power on automatically after the power is turned on next time, there
is no need to press and hold the power button to power on, lf the receiver was off before
the last power failure.
Then the receiver is turned off after the power is turned on next time, and you need to
press and hold the power button to turn it on.

2.SET SETTING BUTTON
Unlock the standby interface, press the SET key to enter the frequency interface, and
display PAlR.Return to the standby interface if the frequency is successful or failed.

3,Frequency reduction key
In the unlocked state, tap or long press this key to decrement the frequency data at an
interval of 250KHz, When the lower frequency limit is reached, it will reverse to the upper
frequency limit.

4. Frequency increase key
In the unlocked state, tap or long press this key to increase the frequency data at intervals
of 250KHz, When the upper frequency limit is reached, it will reverse to the lower
frequency limit.

5. Volume down key
in the unlocked state, tapping or long pressing this key will decrease the volume data at
intervals of 1dB. When the lower limit is reached, it will not be executed again, and the
volume adjustment range is 0-30.

6. Volume increase key
In the unlocked state, tapping or long pressing this key will increase the volume data at
intervals of 1dB. When the upper limit is reached, it will not be executed, and the volume
adjustment range is 0-30.

MICROPHONE OPERATION:

1.Microphone power adjustment
After unscrewing the tail tube, you can see the power switch. Dial to the left to indicate
low power and HI to the right to indicate high power.

2. Gyro switch adjustment
When the microphone is turned off, press and hold the shutdown button for more than 20
seconds, the display will go out first, and then turn off again, the display will show OFF
indicates that the gyroscope function is turned off. At this time, the microphone is stored in
this state when it is released.Repeat the same operation once, the display ON means the
gyroscope function is turned on.

3. Intelligent mute function
The microphone is left to stand for more than about 3 seconds, and enters an automatic
mute state, which can prevent the microphone from howling. Continuous mute status
continues After 15 minutes, automatic energy-saving shutdown. Pick up the microphone
and turn on the sound automatically.
